Products

Carbon rims and wheels, size covered 650C(571), 24"(540), 24"(520), 24"(507), 20"(451), 20"(406), 18" (355), 17" (369), 16"(349), 16"(305), 14" (254), 12"(203).

Overview

ETRTO 406mm 20x1.1, 20x1.2, 20x1.35 carbon rim.

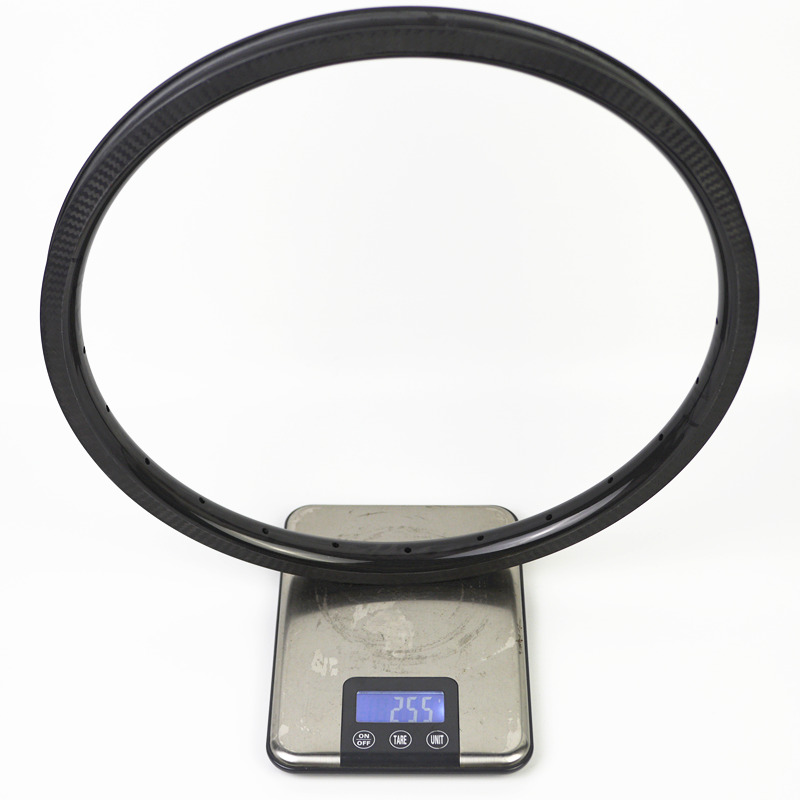

Plume series carbon rims are made for lighter, made for speed, only 250±10g/pc.

With 22MM lower profile and U-Shape design, using both T800 and T700 carbon fiber, which is lighter, stronger and have a good aero.

The rim can be used for Birdy bike, Moulton bicycle, Dahon, Tern bike, Tyrell, Fsir, Folding bike, Recumbent bike, BMX Racing, handbike etc.

1. Minimum order quantity(MOQ): 1 pc.
2. Spokes holes support 14H-36H holes or customized.
3. Support worldwide shipping, Lead time: 5-25 days.
4. 2 years standard warranty, any quality defects replace for free.

Please feel free to contact us for more details.

Specs

Size: 20" 406
Model: 406-C22-25
Use: Folding bike/recumbent/bmx...
Type: Clincher
Depth: 22MM
Inner/outer Width: 19mm/25mm
ERD: 379mm(not including nipple)
Weight: 250+/-10g
Weave: UD/3K Twill/Marble
Finish: Matte/Glossy
Holes: 14H to 36H
Weight limit: Max 100kg/220lb
Spoke Tension: ≤150kgf recommended
Tire pressure: Max 110 psi/7.58bar
Tire width: 25 to 47 recommended
