Overview

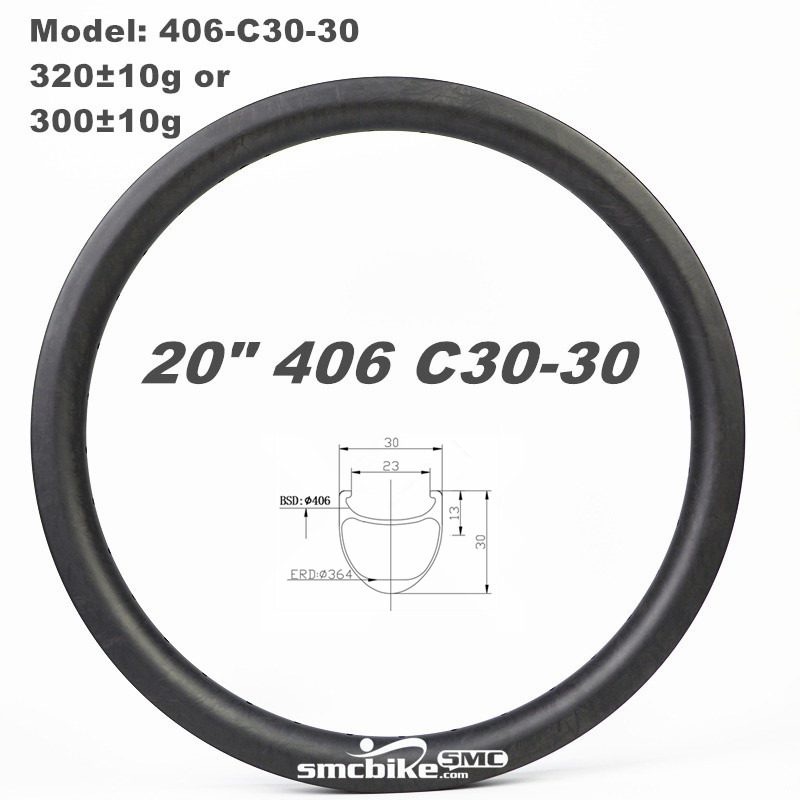

406mm 20x1.5, 20x1.75, 20x1.95, 20x2.125 carbon rim for bmx racing.
Weight options:
1. Standard: 320±10g.
2. Lightweight: 300±10g.
The Standard version use for bmx freestyle, bmx racing or others need high strength.
The Lightweight version use for bmx racing or others lower strength requirement.
This rim is clincher version, if need Tubeless version, click here.
The rim can be used for bmx, bmx Racing, Folding bike, Recumbent bike, ECO Car etc
1. Minimum order quantity(MOQ): 1 pc.
2. Spokes holes support 14H-36H holes or customized.
3. Support worldwide shipping, Lead time: 5-25 days.
4. 2 years standard warranty, any quality defects replace for free.
Please feel free to contact us for more details.

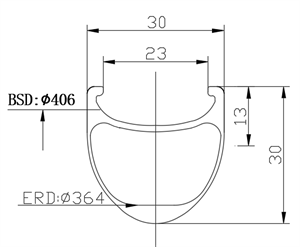

Specs
| Size: | 20" 406 |
| Model: | 406-C30-30 |
| Use: | Folding bike/recumbent/bmx... |
| Type: | Clincher |
| Depth: | 30MM |
| Inner/outer Width: | 23mm/30mm |
| ERD: | 364mm(not including nipple) |
| Weight: | 300+/-10g or 320+/-10g |
| Weave: | UD/3K/12K/Marble |
| Finish: | Matte/Glossy |
| Holes: | 14H to 36H |
| Weight limit: | Max 120kg/265lb |
| Spoke Tension: | ≤150kgf recommended |
| Tire pressure: | Max 110 psi/7.58bar |
| Tire width: | 40 to 62 recommended |
