Use for folding and city bikes

Overview

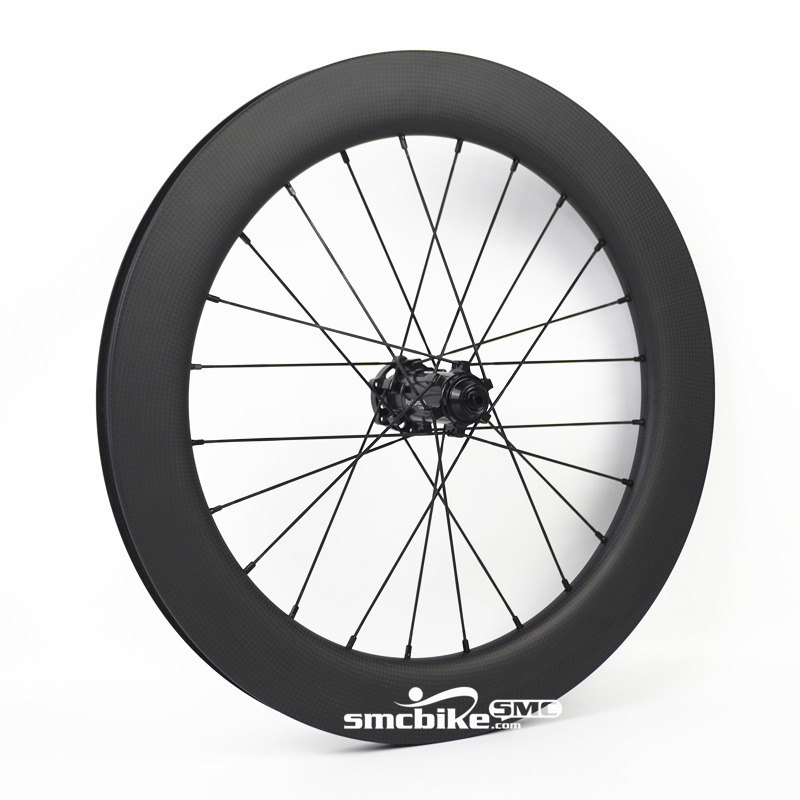

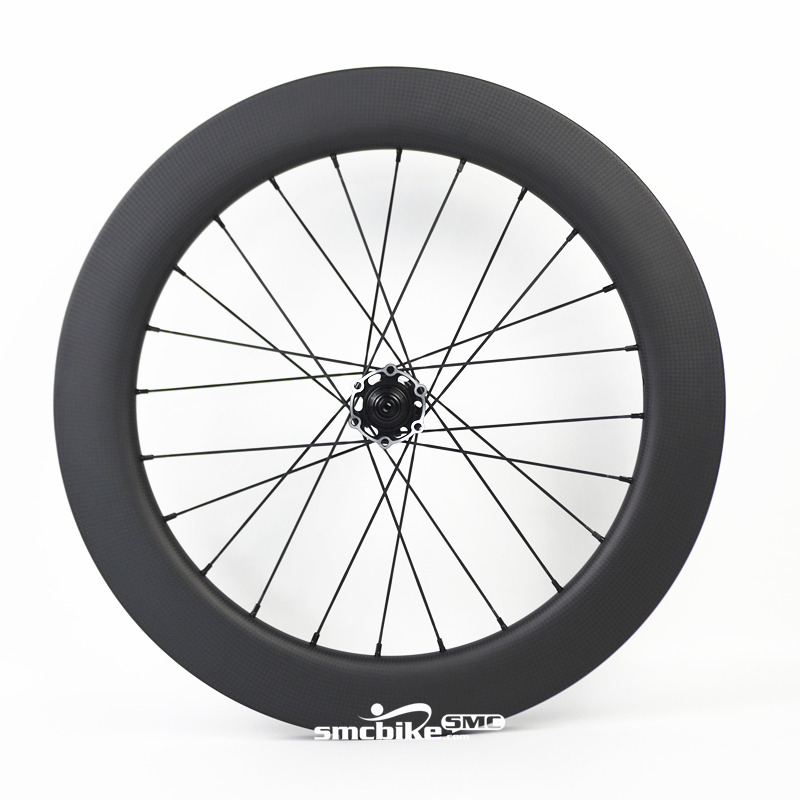

A lightweigt carbon wheelset for 20" folding bike Disc brake or Birdy bike.

This wheel can well fit Schwalbe pro one tubeless tire.

The hub options:

1. 100/135mm for normal bike.

2. 100/135mm special for Birdy bike.

The rim depth support other options: 22MM/30MM/38MM/50MM.

The wheel support custom with other hubs, Novatec/ DT swiss/ Hope/ Industry/ Chris King.

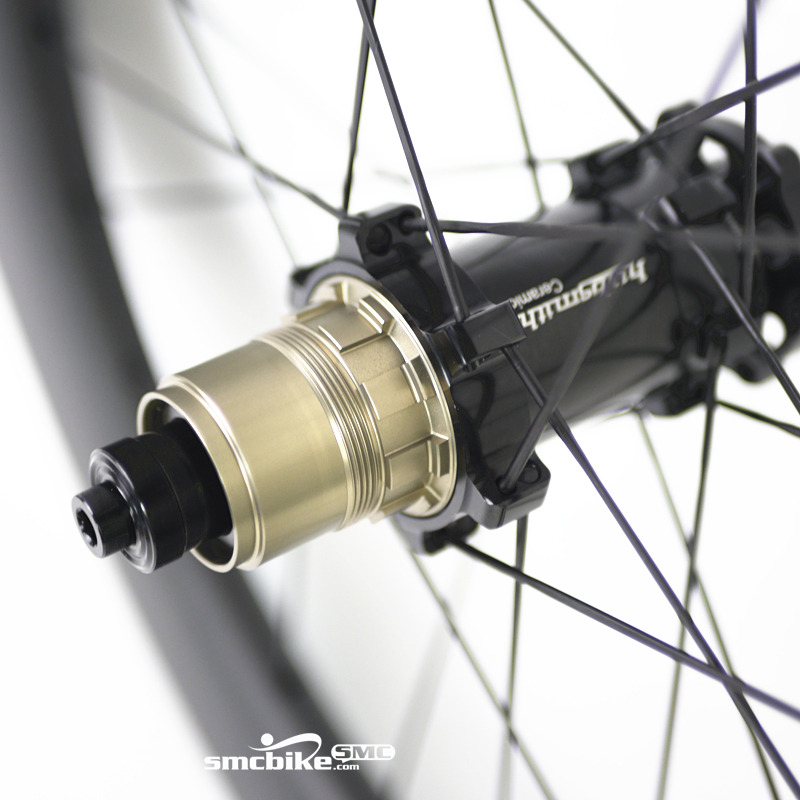

Freehub support shimano & XDR exchange.

With pillar 1420 balded spokes.

With 50MM depth and U-Shape design rim.

Which make stronger, looks more beautiful and have a good aero.

1. Minimum order quantity(MOQ): 1 pair
2. Wheelset including quick release (skewers).
3. Worldwide shipping, Lead time: 5-20 days.
4. 5 years, any quality defects replace for free.

Please feel free to contact us for more details.

Specs

Size: 20" 406
Model: 406-DW1-50
Use: Folding bike
Type: Clincher & Tubeless
Depth: 50MM
Inner/outer Width: 18.4mm/25mm
ERD: 323mm(not including nipple)
Weight: 1180+/-25g
Weave: UD/3K/12K/Marble
Finish: Matte/Glossy

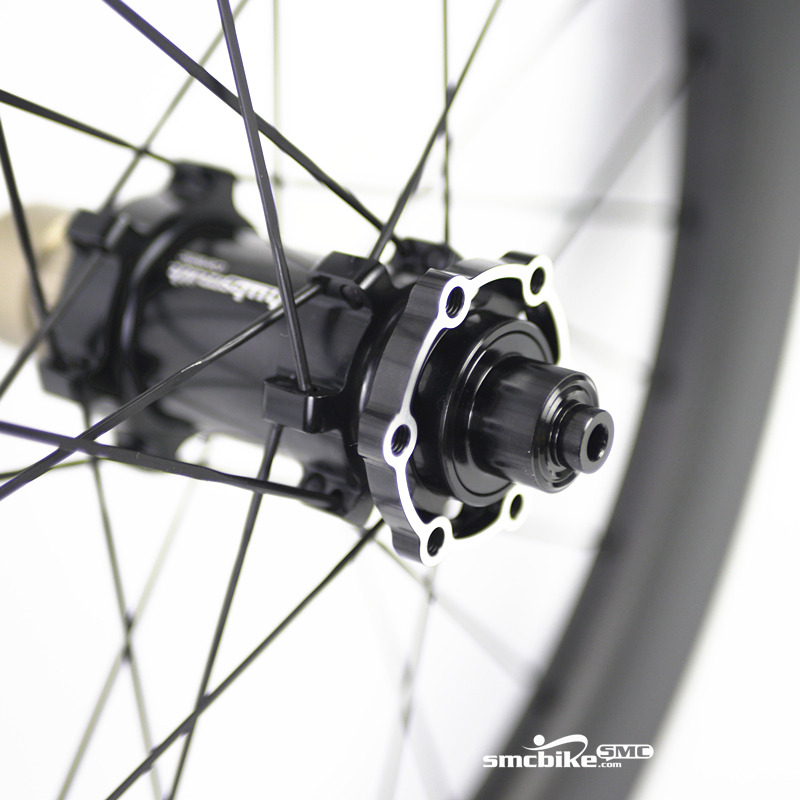

Hub: Hubsmith R027 straight pulled
Hub O.L.D.:  100mm/135mm
Hub color: Black/Red/Silver
Nipple color: Black/Red/Silver
Spokes: Pillar 1420
Holes: Front 24H, Rear: 24H
Weight limit: Max 120kg/265lb
Tire pressure: Max 130 psi/8.96bar
Tire width: 25 to 47 recommended
